RENEWABLE

COASTAL + NEARSHORE
ENERGY SOLUTIONS

40% of world’s population

lives within 100km of the coast. Over 700m people live on islands.

Many of these communities

are struggling to reduce reliance on fossil fuels fast enough to address the climate crisis and face increasing exposure to highly volatile oil and shipping costs.

Sustainable Marine is on a mission

to help these communities achieve energy independence and fight climate change by harvesting clean energy from the waters around them and create transformational socio-economic benefits.

BULB MOON 2.jpg

TIDAL
energy

we've been developing tidal energy systems for OVER a decade

Our team have been involved in deploying modular, community-scale systems in Canada, Scotland, Northern Ireland, Singapore, Indonesia, and South Korea.

PLAT OCEAN PURPLE.jpg

tidal energy platforms

It is dependable, maintainable and accessible year-round, and its modular design allows for it to be easily assembled on-site.

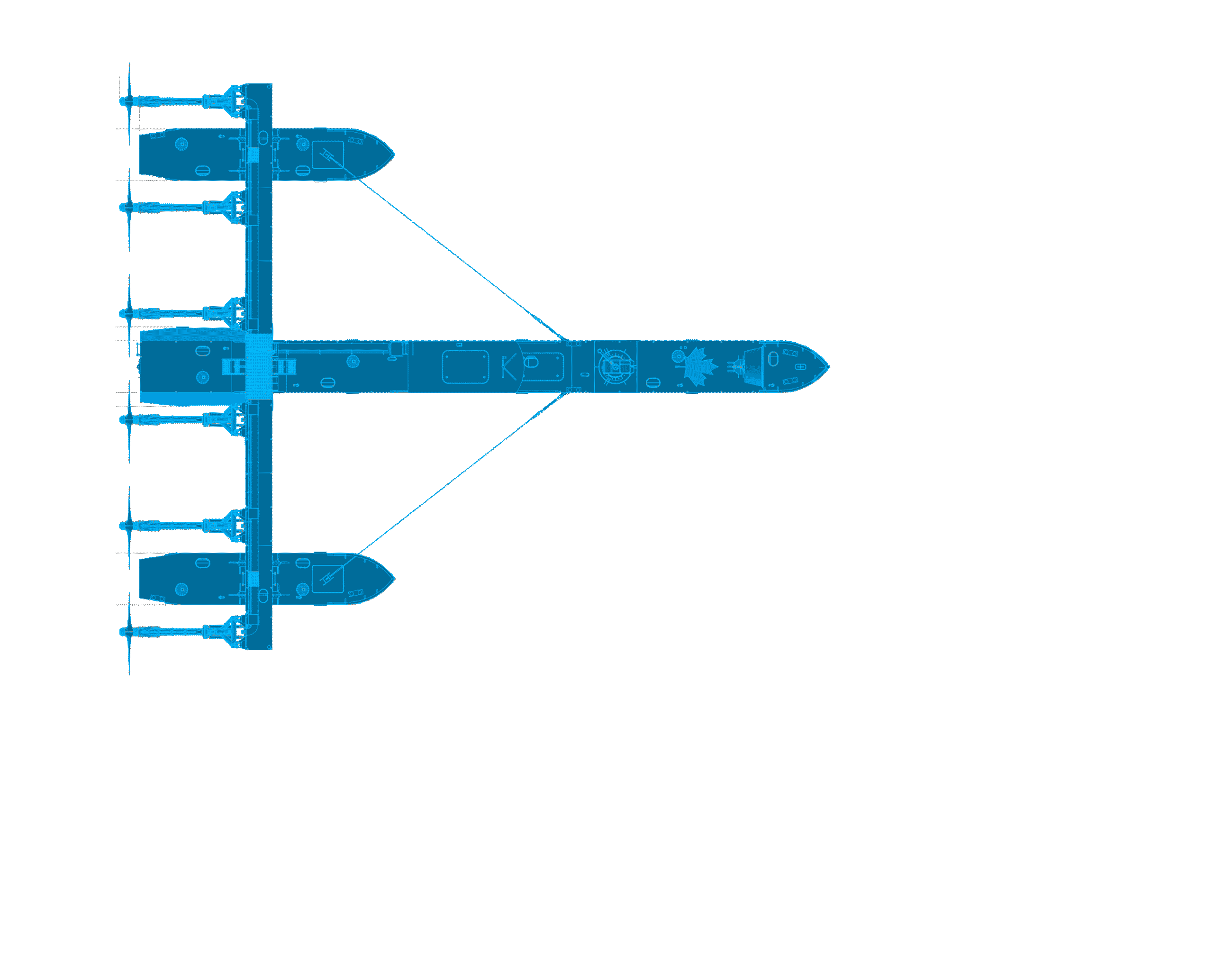

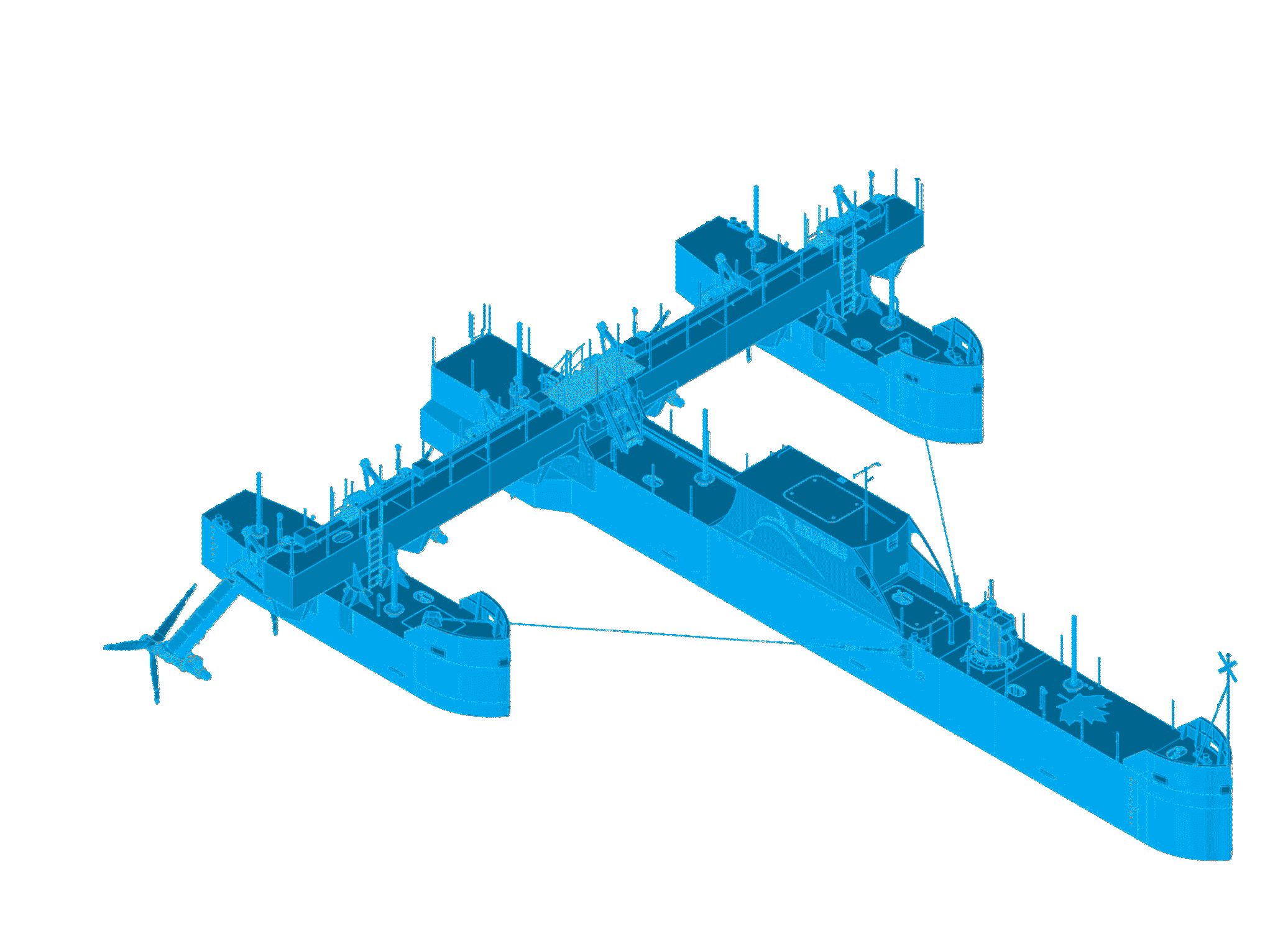

Sustainable Marine’s PLAT-I (PLATform for Inshore energy) is an innovative floating tidal energy system and the first of its kind in the world.



PIVOTAL DESIGN

The mooring turret integrated into Sustainable Marine's proprietary design enables alignment with the tide or river flow in any direction.



The tidal platforms only require 2 meters of water for launching and towing them to their deployment location.


fluid MAINTENANCE


The SCHOTTEL SIT250 turbines are mounted on SIT Deployment Modules (SDMs) allowing them to be quickly raised above the surface for inspection and maintenance, while also reducing draft for transit.



The low mass of the SCHOTTEL turbines allows blades and nacelle to be swapped on-site.

SLEEK AND STABLE

PLAT-I’s design has been developed through numerical modelling and scale model testing at the University of Edinburgh’s FloWave test tank.



Its trimaran design provides low resistance and enhanced lateral and longitudinal stability.

1 PLAT END.png
TIDAL PIONEER.jpg

WORKBOATS

HI-SPEC MULTICAT

The Tidal Pioneer is one the world’s most advanced sub 30-metre workboats, specifically designed for anchor handling, marine construction and survey activities.

WORLD-CLASS CAPABILITIES

Specification are informed by Sustainable Marine's extensive experience delivering marine energy projects in challenging, high-energy environments.

PIONEER SIDE SUBLTE.png

Forward Knuckle Boom & Winch

Aft Knuckle Boom Crane


26 Meters

Bridge

ADVANCED EQUIPMENT

The high-spec 26m ‘Multicat’ has a range of advanced equipment including a four-point mooring system, two deck cranes, Class 1 Dynamic Positioning and an anchor handling winch with a 150-ton holding force.

PIONEER TOP SUBTLE.png

Mooring Winch

Galley

Mooring Winch

Shark Jaws

Towing Pin

Tugger Winch

Towing Winch

Mooring Winch

Towing Hook

Mooring Winch

Anchor Handling Winch


Towing Pin


CAT C32

Volvo Aux D13

Crew Quarters for 6


Volvo Aux D13


CAT 32


Fuel

27.9 m3


Fuel

24.2 m3


Fuel

20.2 m3


Fuel

67 m3


Fuel

10.3 m3


Fresh

Water

8.7 m3


Fresh

Water

19.3 m3


Fresh

Water

9.6 m3


Fresh

Water

9.6 m3


CLASSIFICATION
Bureau Veritas I ✠ HULL • MACH

PERFORMANCES
SPEED: 10 knots
BOLLARD PULL: 34,7 tons

PROPULSION
MAIN ENGINES: 2x Caterpillar C32 ACERT TIER III

AUXILIARIES

GENERATOR SETS: Volvo penta D13

TANKS

FUEL OIL: 107 m3

FRESH WATER: 67 m3

CRANES
DECK CRANE FORWARD: Heila HLRM 230-4SL, 20 tons dual pull
DECK CRANE AFT: Heila HLRM 140-3S

ACCOMMODATION
FACILITIES: Airconditioned accommodation for up to 6 persons

DP SYSTEM

PIONEER PURPLE WATER SIDE.jpg

EFFICIENT
LOW EMISSION ENGINES

Moving at speeds up to 10.8 knots, the vessel is powered by two Caterpillar C32 ACERT TierIII main engines, with two Volvo penta D13auxiliary generator sets. It is classed as a Bureau Veritas ‘special service multipurpose ship with unrestricted navigation’.

DRILL BLUE.jpg

We have developed an innovative rock anchoring system that can be used to moor platforms and pin structures to the seabed in high energy environments.



Find out more at the website of our sister company Swift Anchors.

TRACTOR BLUE 3.jpg
